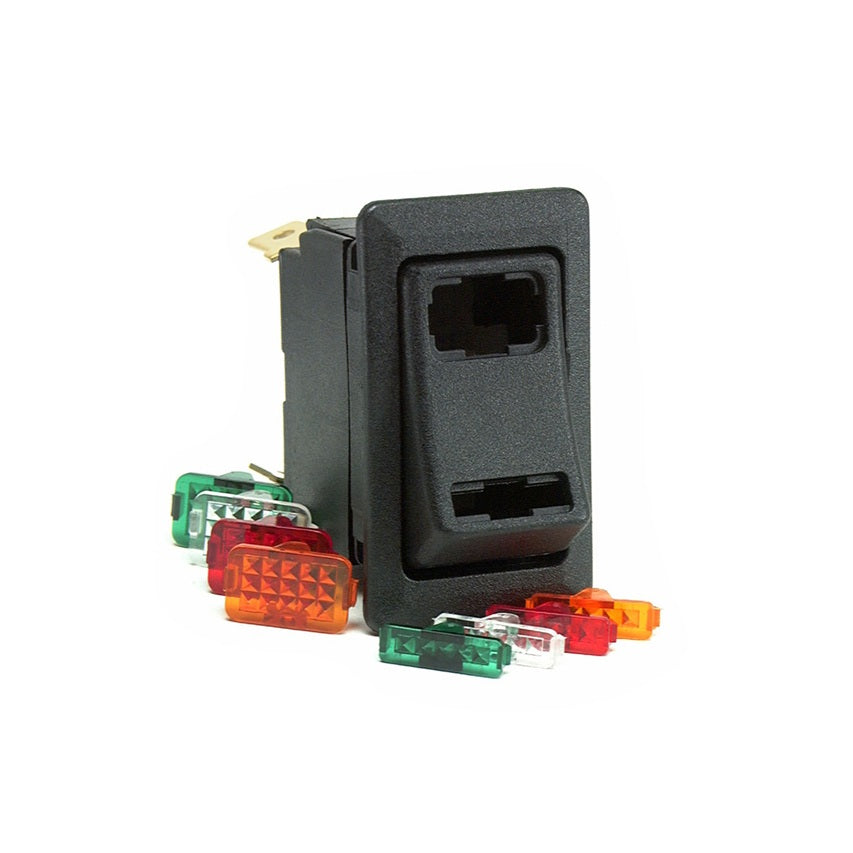

Cole Hersee Rocker Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 58328 Series is our most popular line of LED-enabled rocker switches. These products are single-actuator switches that are commonly used for in-cabin controls, but are also IP66 rated against dust and moisture.
Made in USA
- Current Rating (Continuous) in Amps 15
- Maximum DC Voltage (V) 24
- Circuitry SPDT
- Positions On - Off - On
- Input Terminals 4 Blade
- Actuator Rocker Button
- Contacts Silver
- Housing Black Plastic
- Mounting Method Panel Snap–In – .964(24.52mm) x 1.69(43.16)
- Panel Thickness .093 (2.37mm) to .187 (4.76mm)
- Color & Finish Black Plastic
- Mounting Hole Dimensions (mm) 36.83mm x 21.08mm
